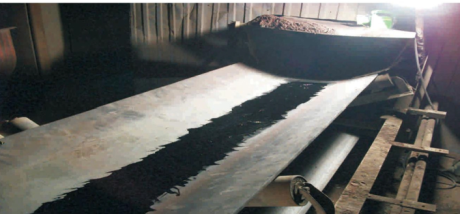

Oil resistant conveyor belts are designed for conveying oily materials or operating in working environments where the belt may come into contact with different kinds of oil.
The cover rubber uses high-acrylonitrile rubber as the main material. Cotton canvas, nylon canvas or polyester canvas can be used as the strength layer according to application requirements.
Oil resistant conveyor belts are suitable for material handling applications where ordinary rubber belts may swell, soften or lose performance due to oil contact. They help maintain belt stability, tensile retention and service performance in oily working conditions.
Technical Specifications
Oil resistant conveyor belt performance is selected according to oil type, material condition, belt structure and working environment.
Basic Information
Item
Specification
Product Type
Oil resistant conveyor belt
Cover Rubber
High-acrylonitrile rubber
Strength Layer
Cotton canvas / nylon canvas / polyester canvas
Application
Oily materials or oil-contact working environments
Main Advantages
Low volume change rate, high tensile retention and wide application range
Coating Rubber Physical Performance
Index Item
Requirement
Hardness
Shore A 60 ± 5
Abrasion Value
≤ 1.20 cm³ / 1.6 cm
Tensile Strength
≥ 10.0 MPa
Elongation at Break
≥ 300%
Oil-resistant Volume Change Rate
≤ 10% after 50°C × 24h in 70# aviation oil
Note: The suitable oil resistant conveyor belt should be selected according to oil type, material properties, belt structure, conveyor length and working conditions. Please contact us for project-based selection.
Features
Suitable for oily materials and oil-contact environments
High-acrylonitrile rubber cover
Cotton, nylon or polyester canvas strength layer available
Low volume change rate after oil exposure
High tensile retention performance
Suitable for applications where ordinary rubber belts may be affected by oil
Applications
Suitable for conveying oily materials and for working environments where conveyor belts may contact mineral oil, vegetable oil, lubricating oil or other oil-containing materials.
Customization Options
Cover rubber type, belt width, belt length, carcass material, fabric layers, rubber cover thickness and oil resistance requirement can be selected according to material type, oil type and working conditions.
Need Oil Resistant Conveyor Belts for Your Project?
Send us your material type, oil type, belt width, belt length, conveyor length, carcass material and working conditions. Our team will help recommend a suitable oil resistant conveyor belt solution.
